Siemens tc35 gsm module with AT commands

Bluetooth, XBee, RF......

Siemens tc35 gsm module with AT commands

Postby ourie » Thu Mar 21, 2013 6:26 am

hi... i just buy this tc35 siemens gsm module.... i encounter some problem when using the AT commands... btw, i using hyperterminal, arduino uno and flash magic to try enter the AT command..... the baud rate is 19200 not 9600 as from the tutorial... the problem is, when the 'at' is entered, i dont get the feedback 'ok' from the gsm module.... but when i call from my phone to the gsm simcard, i got 'RING" feedback from the gsm...

the connection i use to connect the gsm module to the pc is 'siemens tc35' > 'rs232a' > 'uc00a' > pc.... (as from cytron product code)...
pls assist me....
ourie
Freshie

Posts: 5
Joined: Thu Mar 21, 2013 5:51 am

Re: Siemens tc35 gsm module with AT commands

Postby gadgetng » Thu Mar 21, 2013 7:59 am

The baud rate is 9600 as i saw from the User Manual. Why you used 19200? You have changed the GSM setting? I dont see any command to change the baud rate in the User Manual. :twisted:
gadgetng
Discoverer

Posts: 97
Joined: Tue Jul 24, 2012 11:20 am

Re: Siemens tc35 gsm module with AT commands

Postby robosang » Thu Mar 21, 2013 10:17 am

I would check the hardware setup first.

Can you share some pictures on the hardware setup? So we can see the connection better.
robosang
Expert

Posts: 1239
Joined: Wed Jun 10, 2009 5:37 pm

Re: Siemens tc35 gsm module with AT commands

Postby ourie » Thu Mar 21, 2013 5:54 pm

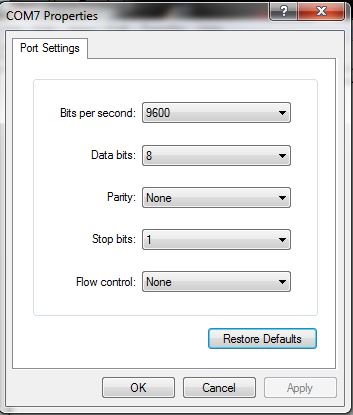

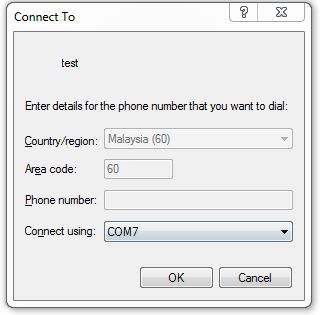

as i setting the hyperterminal


the default baud rate 9600

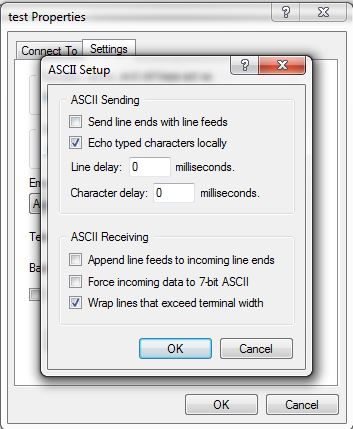

other settings that im doing... (pls tell me if there's more....)


the AT command as i entered... no 'OK' is replied...

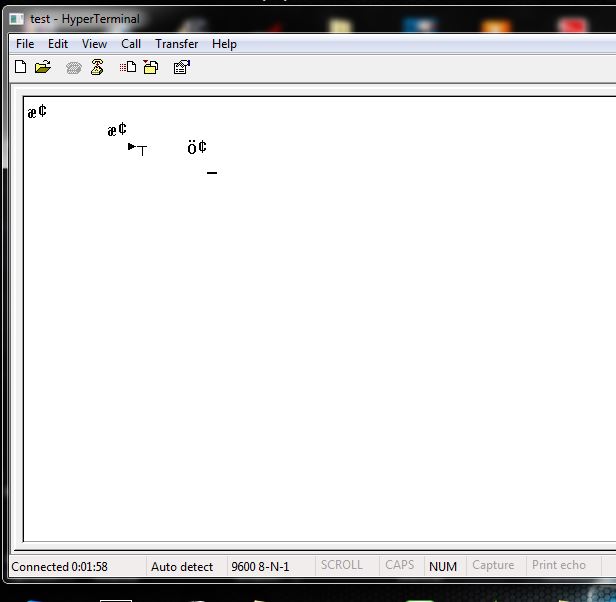

this is the feedback call that i got from my mobile to gsm simcard.... some wierd citation when i set the baud rate 9600...
ourie
Freshie

Posts: 5
Joined: Thu Mar 21, 2013 5:51 am

Re: Siemens tc35 gsm module with AT commands

Postby ourie » Thu Mar 21, 2013 5:59 pm

the 'RING' appear when i call to gsm simcard.... the baud rate 19200.... not 9600

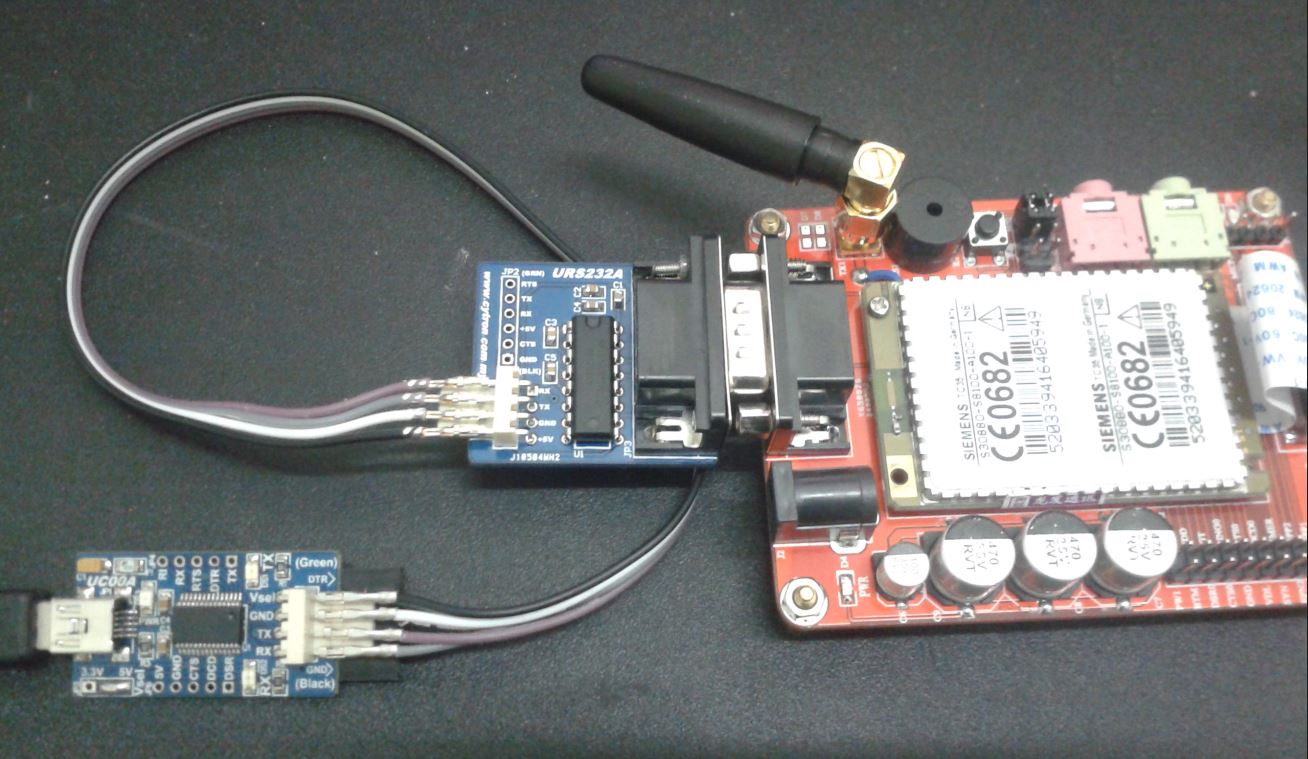

the hardware connection.... using UC00A and RS232A.... tell me if something wrong....
ourie
Freshie

Posts: 5
Joined: Thu Mar 21, 2013 5:51 am

Re: Siemens tc35 gsm module with AT commands

Postby robosang » Thu Mar 21, 2013 7:09 pm

Seem to be right, so have you try to send the "AT" using 19200 baud? Did you press "enter" after the "AT"?
robosang
Expert

Posts: 1239
Joined: Wed Jun 10, 2009 5:37 pm

Re: Siemens tc35 gsm module with AT commands

Postby ourie » Thu Mar 21, 2013 8:29 pm

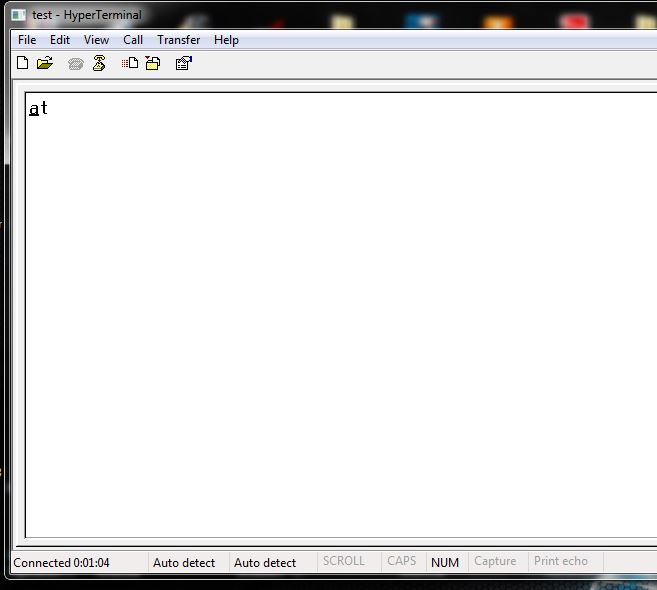

yeah.... i pressed AT button... and pressed enter..... but no response....
ourie
Freshie

Posts: 5
Joined: Thu Mar 21, 2013 5:51 am

Re: Siemens tc35 gsm module with AT commands

Postby ourie » Thu Mar 21, 2013 9:53 pm

SOLVED.... i manage solved these problem with my friends....

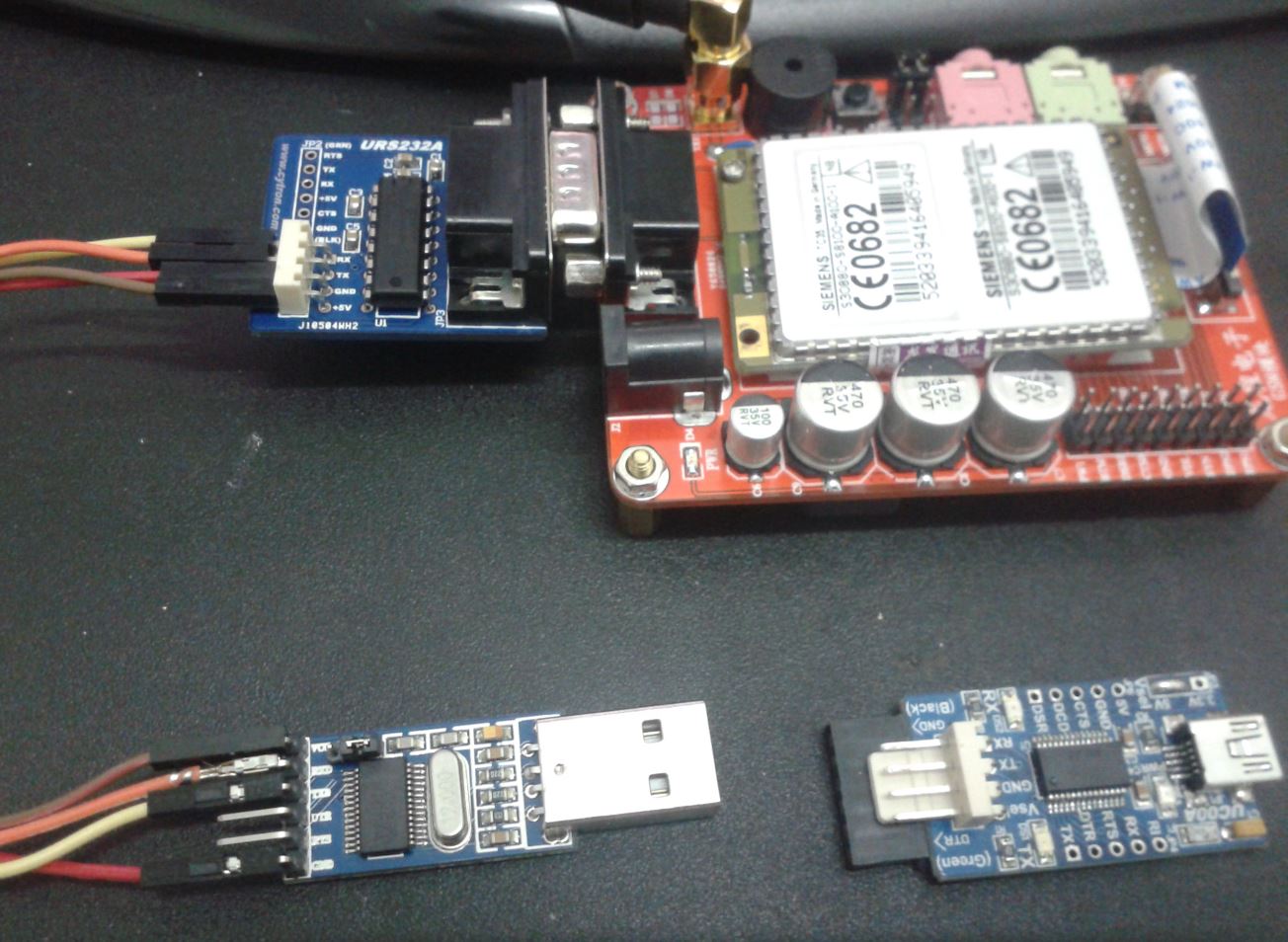

the problem is the UC00A(right btm).... i solved the problem by swap with the UC00B(left btm) from my friend....
i also try the UC00A to my friend's laptop (Windows 8), also got problem with the hyperterminal.... maybe i try to refund the item UC00A (if can) or getting check/repair by the cytron's staff...



i also manage to get the AT commands properly now with baud rate 9600 as from the tutorial....

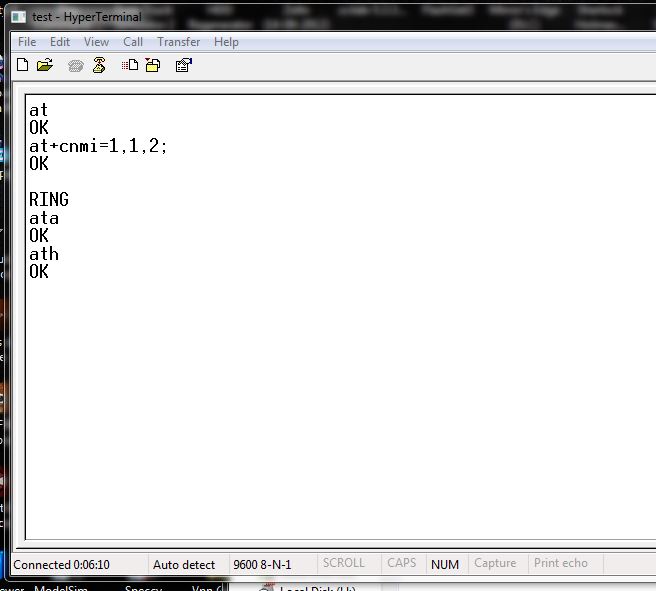

this is example to answering phone call from gsm module.....

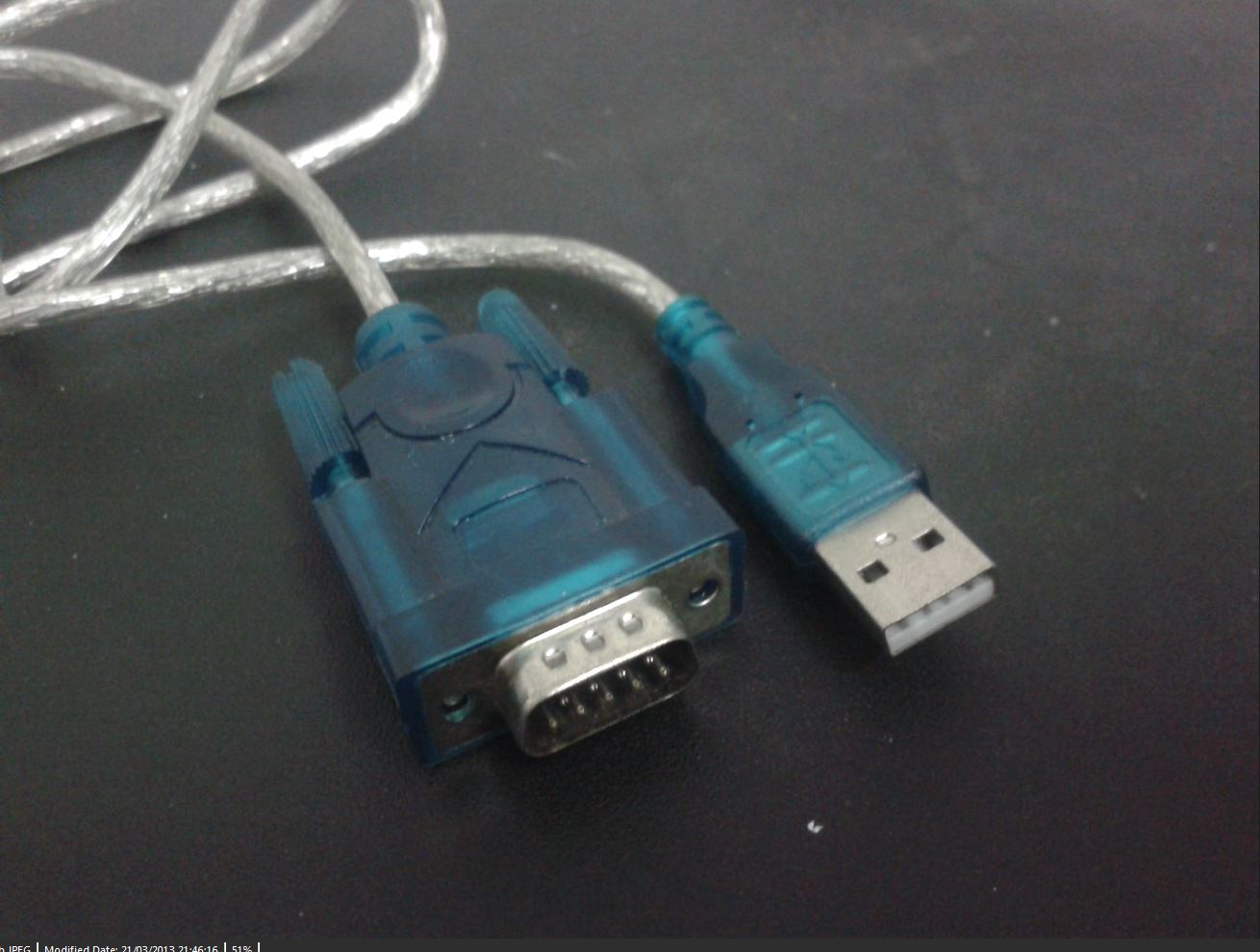

i also use this cable to try the gsm module and the hyperterminal... and it works...


i wanna ask, is this risky to use direct usb to serial converter cable directly with the gsm module?....
and if can, i wanna swap UC00A with this product (WR-USB-SERIAL)?....
ourie
Freshie

Posts: 5
Joined: Thu Mar 21, 2013 5:51 am

Re: Siemens tc35 gsm module with AT commands

Postby robosang » Fri Mar 22, 2013 8:01 am

Good, at least we know what is the problem.

You can try to contact Cytron technical team, I am not their staff and cannot speak for them. Fill in the form under their website support tab. The technical team will follow up with you.
robosang
Expert

Posts: 1239
Joined: Wed Jun 10, 2009 5:37 pm

Re: Siemens tc35 gsm module with AT commands

Postby yeech » Tue Apr 23, 2013 9:00 am

ourie WROTE:


i wanna ask, is this risky to use direct usb to serial converter cable directly with the gsm module?....
and if can, i wanna swap UC00A with this product (WR-USB-SERIAL)?....


I am using this cable for communication with my gsm tc35i but seems like its not working.
May I know where u get the driver?
Can provide me the link? I am using window 7 32bits.

Driver in http://www.cytron.com.my/viewProduct.ph ... USB-SERIAL is not working for my laptop.
Thank you.
yeech
Freshie

Posts: 7
Joined: Tue Oct 02, 2012 12:51 pm
