Postby pic16 » Fri Jul 05, 2013 5:30 pm

Hi, everyone....
I would like to ask a question.

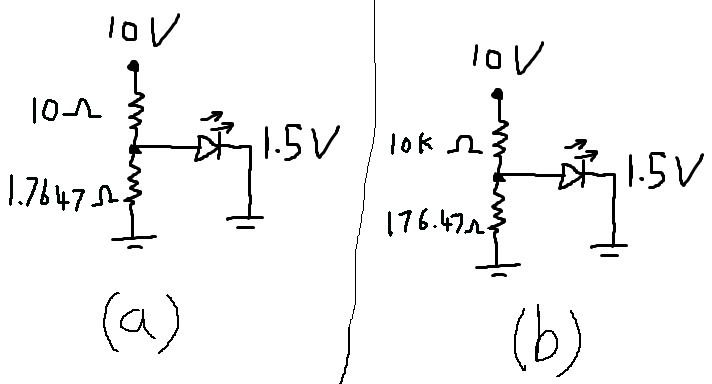

let's say, a 470uf 10v capacitor will be the power supply to 1.5v LED.
by using voltage divider to reduce the LED acceptable voltage, which circuit could make LED light last longer or both just same result?
Attachments
i'm poor in english and just an electronic hobbyist.
pic16
Amateur

Posts: 133
Joined: Tue Jan 04, 2011 2:28 pm
Location: Earth

Re: current??

Postby pic16 » Fri Jul 05, 2013 6:17 pm

sorry, circuit (b) should be 1764.7 ohm
i'm poor in english and just an electronic hobbyist.
pic16
Amateur

Posts: 133
Joined: Tue Jan 04, 2011 2:28 pm
Location: Earth

Re: current??

Postby robosang » Fri Jul 05, 2013 10:37 pm

Why you need a voltage divider? Why don just put a high resistance resistor series with the LED?
robosang
Expert

Posts: 1239
Joined: Wed Jun 10, 2009 5:37 pm

Re: current??

Postby shahrul » Fri Jul 05, 2013 11:04 pm

After the degree, I'm not applying much calculation anymore. So, just make it and try-and-error. But practically, it's don't have 1764 ohm in the market, hehe
User avatar
shahrul
Professional

Posts: 812
Joined: Sat May 16, 2009 9:54 pm
Location: Selangor

Re: current??

Postby pic16 » Sat Jul 06, 2013 2:19 am

yes I know I could just use 1.5v AAA battery to light LED.
but I want to research the circuits, nothing different, no pros and cons, or something?
i'm poor in english and just an electronic hobbyist.
pic16
Amateur

Posts: 133
Joined: Tue Jan 04, 2011 2:28 pm
Location: Earth

Re: current??

Postby ABSF » Sat Jul 06, 2013 9:27 am

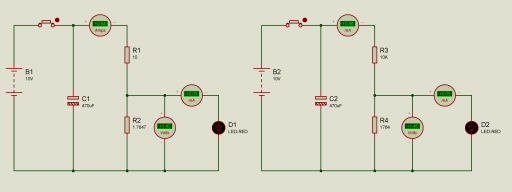

In both cases, the LED will not even get lighted.



1st case, the current from the battery is 840mA, but most of the current is swallowed up by the bottom resistor. Only 0.03mA goes to the LED not enough to light the LED.

2nd case, the 10K resistor is too high, there is not even enough current going into the circuit not to mention the LED.
The next war will determine NOT who is right BUT what is left.
User avatar
ABSF
Professional

Posts: 810
Joined: Wed Nov 10, 2010 9:32 am
Location: E Malaysia

Re: current??

Postby pic16 » Sat Jul 06, 2013 9:10 pm

ABSF WROTE:In both cases, the LED will not even get lighted.



1st case, the current from the battery is 840mA, but most of the current is swallowed up by the bottom resistor. Only 0.03mA goes to the LED not enough to light the LED.

2nd case, the 10K resistor is too high, there is not even enough current going into the circuit not to mention the LED.





thank u very much ABSF, you always solve my problem effectively :P
i'm poor in english and just an electronic hobbyist.
pic16
Amateur

Posts: 133
Joined: Tue Jan 04, 2011 2:28 pm
Location: Earth

Re: current??

Postby pic16 » Mon Jul 08, 2013 5:48 pm

one more question

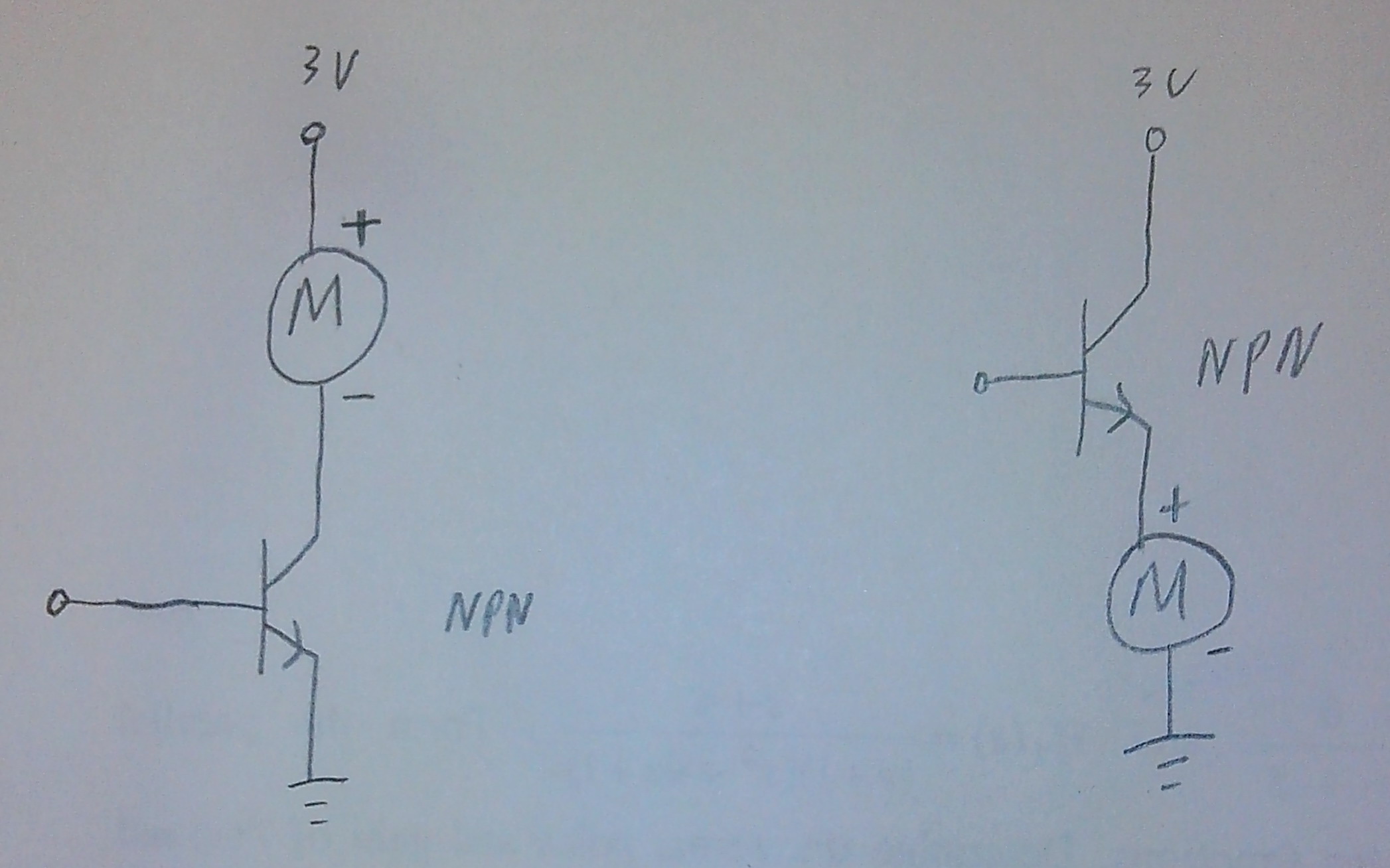

is there any different put motor upside and downside?
Attachments
i'm poor in english and just an electronic hobbyist.
pic16
Amateur

Posts: 133
Joined: Tue Jan 04, 2011 2:28 pm
Location: Earth

Re: current??

Postby ABSF » Tue Jul 09, 2013 9:29 pm

is there any different put motor upside and downside?


Sure, there are differences.

The one one the left is called common emitter or "CE" config..... It has more gain and when the BJT saturates, the voltage drop across the CE would be lower so the motor would get higher voltage and current.

On the right is the common collector or "CC" config. It has a unity gain (i.e. gain=1) and need more current to saturate as compared to the CE config. Your motor would get less current in this config.

Since you're driving motor load, it is better to use the CE configuration. The CC is normally used for non-inverting buffer meaning the output signal is in phase with the input signal. In CE config, the output signal is inverted compared to input signal.

Allen
The next war will determine NOT who is right BUT what is left.
User avatar
ABSF
Professional

Posts: 810
Joined: Wed Nov 10, 2010 9:32 am
Location: E Malaysia

Re: current??

Postby pic16 » Wed Jul 10, 2013 12:49 am

ABSF WROTE:
is there any different put motor upside and downside?


Sure, there are differences.

The one one the left is called common emitter or "CE" config..... It has more gain and when the BJT saturates, the voltage drop across the CE would be lower so the motor would get higher voltage and current.

On the right is the common collector or "CC" config. It has a unity gain (i.e. gain=1) and need more current to saturate as compared to the CE config. Your motor would get less current in this config.

Since you're driving motor load, it is better to use the CE configuration. The CC is normally used for non-inverting buffer meaning the output signal is in phase with the input signal. In CE config, the output signal is inverted compared to input signal.

Allen




I see, I see
could you recommend me any fast switching or high sensitive transistor if I use very small current & voltage with high frequency input (like PWM)at the Base? got transistor like this in big watt and small watt?
i'm poor in english and just an electronic hobbyist.
pic16
Amateur

Posts: 133
Joined: Tue Jan 04, 2011 2:28 pm
Location: Earth

Next
