Adding regulated 5V to the Maker Uno

Talk about Arduino board, sheilds. Sharing Arduino projects, program, problems, solutions, suggestions..... many more, all are welcome.

Adding regulated 5V to the Maker Uno

Postby lowfuyuan » Tue Apr 03, 2018 7:26 am

Dear admin,
I am undergoing my personal project where I want to use the 5V output from the LN298N Motor Driver Module to the Maker Uno.
Can I know a way to use this power supply to the Maker Uno as I don't see a Vin?
I have also tried plugging the voltage to the 5V pin but it doesn't work.
lowfuyuan
Greenhorn

Posts: 2
Joined: Sat Oct 24, 2015 9:16 am

Re: Adding regulated 5V to the Maker Uno

Postby Idris » Wed Apr 04, 2018 9:18 am

Hi lowfuyuan,

Yes you can use regulated 5V from L298N Dual H Bridge Motor/Stepper Driver to power up your Maker UNO. Just connect 5V & GND from driver to 5V & GND pin at Maker UNO. I also do the same connection at my Maker UNO Bluetooth Mobile Robot.

P/s: Make sure the mini jumper (black) at the back of Vin-GND connector is connected.

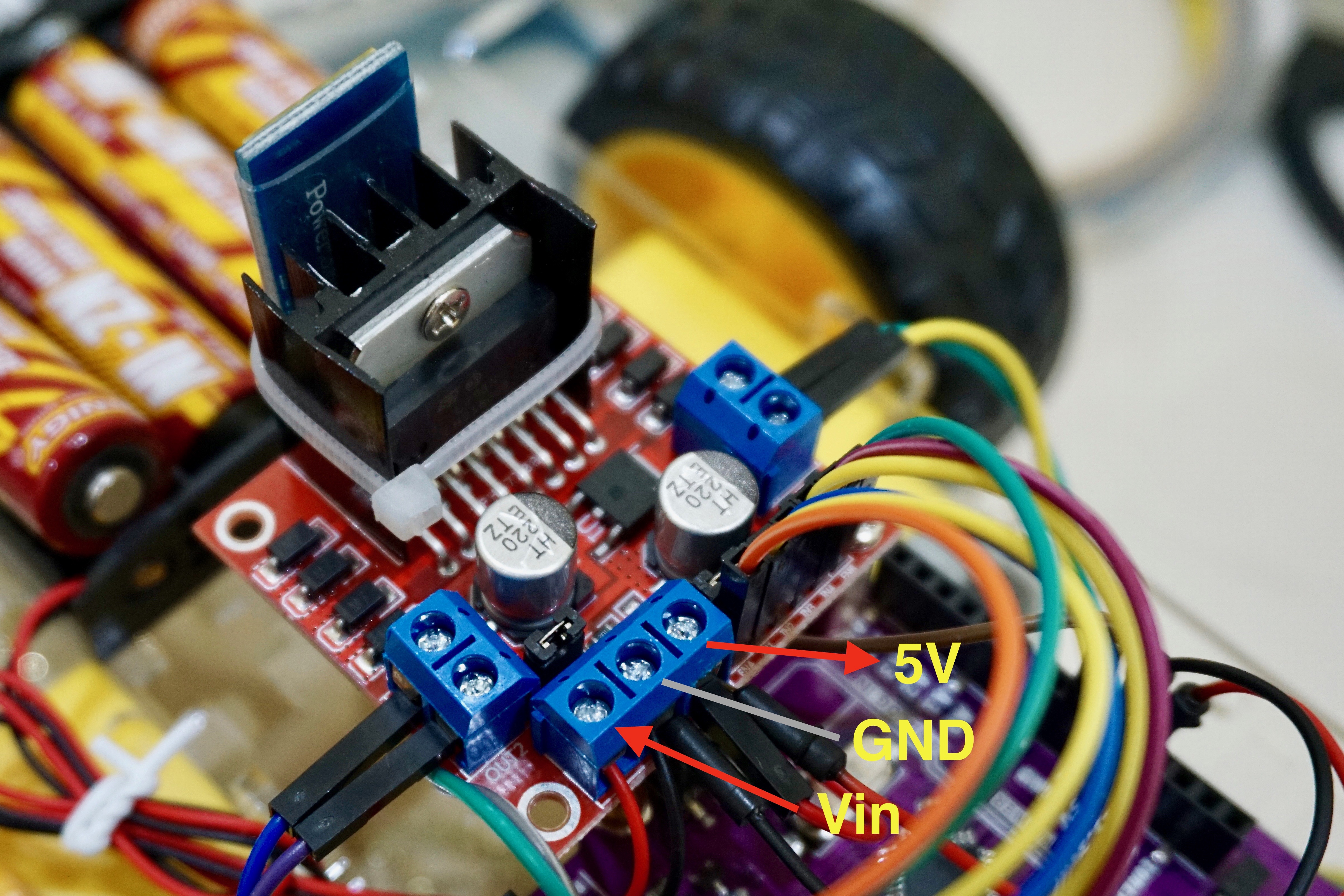

DSC08980 (1).jpg

Thanks.
