SmartDriveDuo-30 and Pixhawk

Postby gianakop » Mon Jul 30, 2018 8:34 pm

Hello everybody!

I have bought from Cytron the SmartDriveDuo-30 Dc motor driver https://www.cytron.io/c-93-dc-motor-driver/dc-motor-driver/p-mdds30, and I'm trying to make an autonomous tracked robod with Pixhawk (https://pixhawk.org/)as a brain.
Does anyone knows how to manipulate both?
In which mode must I turn my SmartDriveDuo-30?
Is the Microcontroller Analog/PWM the appropriate mode?
Nikos Giannakopoulos ( Math & STEM teacher)
Web: https://gianakop.wordpress.com/
Videos: https://www.youtube.com/user/NGYT40/featured
User avatar
gianakop
Freshie

Posts: 7
Joined: Mon Jul 30, 2018 8:20 pm
Location: Greece

Re: SmartDriveDuo-30 and Pixhawk

Postby gianakop » Tue Jul 31, 2018 1:21 am

The sure is that a similar motor controller, the Sabertooth can work together with Pixhawk
Here is a video that demonstrates this cooperation:
Pixhawk connection with Sabertooth 2×12 mixed mode https://www.youtube.com/watch?v=IY_vMaAfObA
[youtube]https://www.youtube.com/watch?v=IY_vMaAfObA[/youtube]

SmartDriveDuo-30 I think is better, so I think that can also work together with Pixhawk...

I appreciate any suggestion...

Thank you in advance
Nikos
Nikos Giannakopoulos ( Math & STEM teacher)
Web: https://gianakop.wordpress.com/
Videos: https://www.youtube.com/user/NGYT40/featured
User avatar
gianakop
Freshie

Posts: 7
Joined: Mon Jul 30, 2018 8:20 pm
Location: Greece

Re: SmartDriveDuo-30 and Pixhawk

Postby Idris » Wed Aug 01, 2018 11:06 am

Hi gianakop,

I never use Pixhawk but I believe it is compatible. What is the signal come out from the Pixhawk that you plan to connect to MDDS30?
Cytron Technologies invest time and resources providing tutorial, training and support for STEM education and maker movement. We need your support by purchasing products from Cytron Technologies. Thanks.
http://www.cytron.com.my
User avatar
Idris
Moderator

Posts: 366
Joined: Thu Mar 22, 2012 5:28 pm
Location: Pulau Pinang

Re: SmartDriveDuo-30 and Pixhawk

Postby gianakop » Thu Aug 02, 2018 12:00 am

Idris wrote:Hi gianakop,

I never use Pixhawk but I believe it is compatible. What is the signal come out from the Pixhawk that you plan to connect to MDDS30?



Hi Idris,

The signal that comes out from Pixhawk is an RC signal

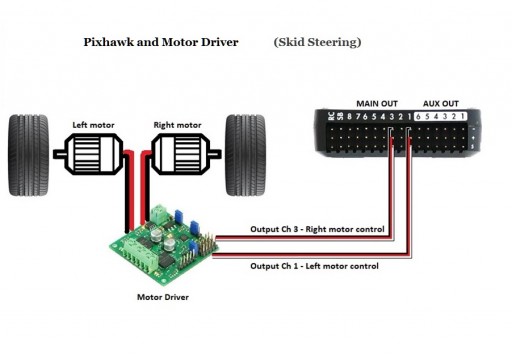

Here is what Pixhawk says for connections with a Motor Driver for Skid Steering controll (diferential robot):

" “Skid steering” vehicles control their direction and forward/reverse motions by varying the speed of two (or more) independent wheels. For these style rovers the left wheel should be connected to RC Output 1 and the right wheel should be connected to RC Output 3."
Here you can see the original article:
http://ardupilot.org/rover/docs/rover-motor-and-servo-connections.html




Thank you Nikos
Attachments
Nikos Giannakopoulos ( Math & STEM teacher)
Web: https://gianakop.wordpress.com/
Videos: https://www.youtube.com/user/NGYT40/featured
User avatar
gianakop
Freshie

Posts: 7
Joined: Mon Jul 30, 2018 8:20 pm
Location: Greece

Re: SmartDriveDuo-30 and Pixhawk

Postby gianakop » Wed Aug 08, 2018 9:13 pm

Hi again,

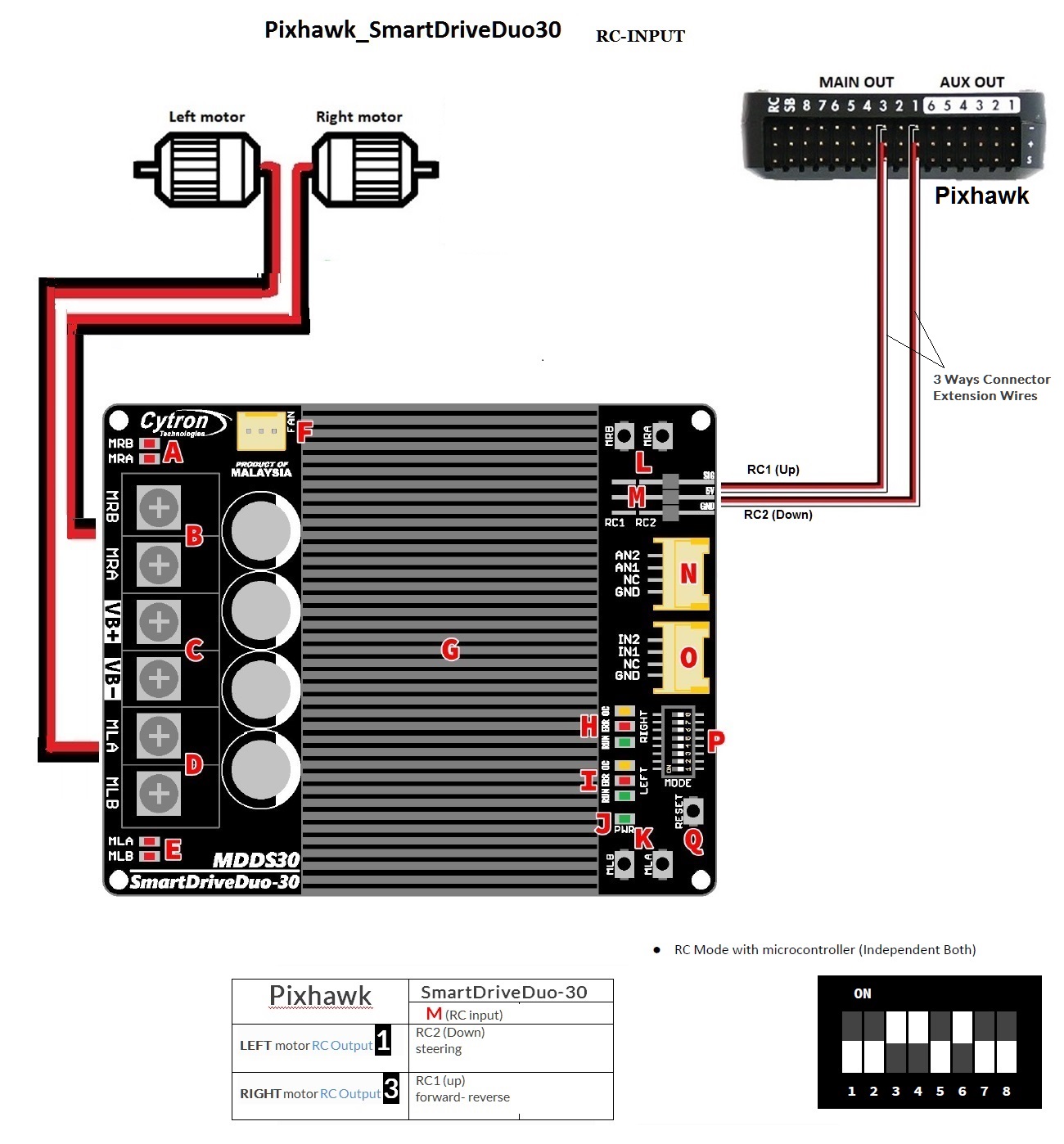

After a lot of tests, a successful way to connect SmartDriveDuo30 and Pixhawk is to set SmartDriveDuo30 in RC Mode with microcontroller (Indepentent Both) and connect Pixhawk’s RC1 and RC3 outputs to RC1 and RC2 SmartDriveDuo30’s inputs using two 3Ways Connector Extension Wires
On Mission planner sofware you can also do the following:

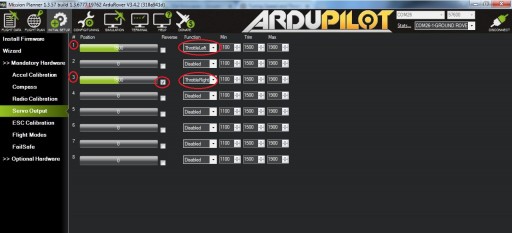

1) From menu: INITIAL SETUP--> Mandatory Hardware --> Servo Output set: #1 Throttle Left, and #3 Throttle Right(tick also the reverse option on that)

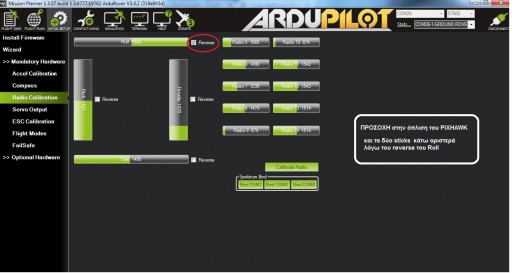

2)From menu : INITIAL SETUP --> Radio Calibration Tick the Reverse option
Attachments
Nikos Giannakopoulos ( Math & STEM teacher)
Web: https://gianakop.wordpress.com/
Videos: https://www.youtube.com/user/NGYT40/featured
User avatar
gianakop
Freshie

Posts: 7
Joined: Mon Jul 30, 2018 8:20 pm
Location: Greece

Re: SmartDriveDuo-30 and Pixhawk

Postby gianakop » Thu Aug 09, 2018 4:06 am

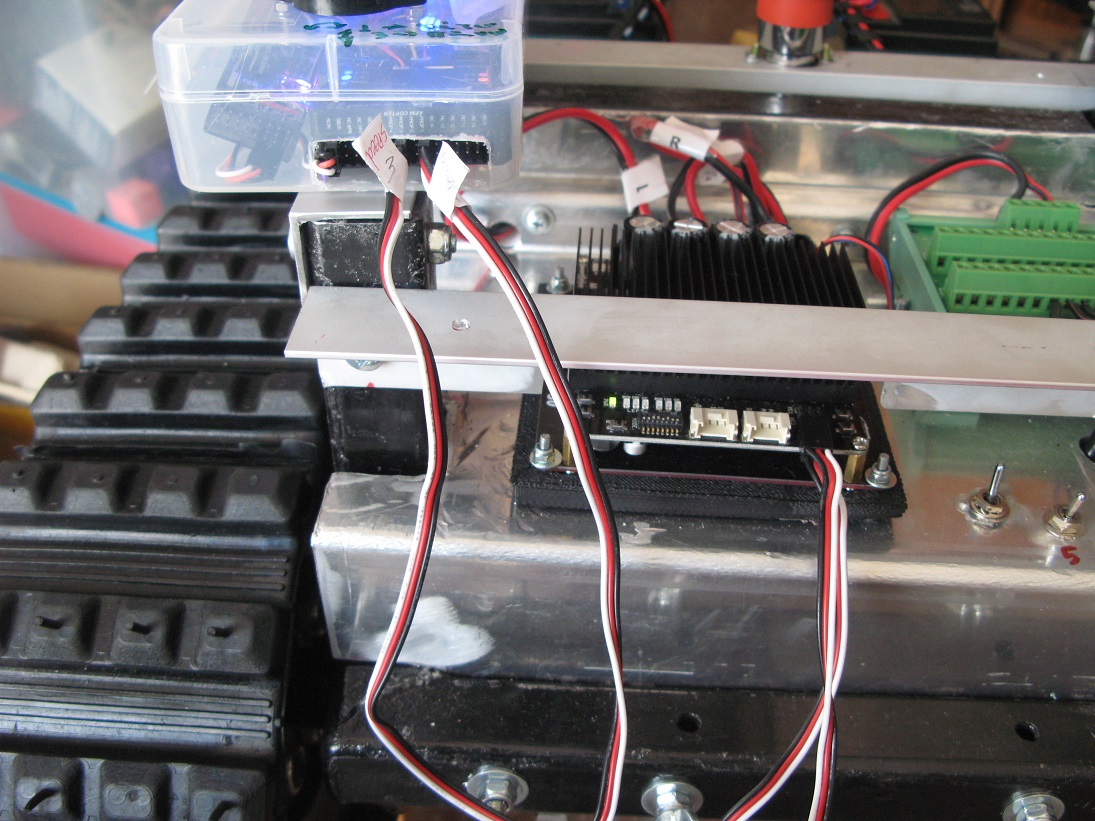

And here is the wiring on my UGV Tracked platform.....

Attachments
Nikos Giannakopoulos ( Math & STEM teacher)
Web: https://gianakop.wordpress.com/
Videos: https://www.youtube.com/user/NGYT40/featured
User avatar
gianakop
Freshie

Posts: 7
Joined: Mon Jul 30, 2018 8:20 pm
Location: Greece

Re: SmartDriveDuo-30 and Pixhawk

Postby ober » Sat Aug 11, 2018 8:26 pm

User avatar
ober
Moderator

Posts: 1397
Joined: Wed Apr 15, 2009 1:03 pm

Re: SmartDriveDuo-30 and Pixhawk

Postby gianakop » Sun Aug 19, 2018 1:29 am

Here is the video from my Skid Steering test...


https://youtu.be/nPxv-j1DYSA
[youtube]https://www.youtube.com/watch?time_continue=8&v=nPxv-j1DYSA[/youtube]
Nikos Giannakopoulos ( Math & STEM teacher)
Web: https://gianakop.wordpress.com/
Videos: https://www.youtube.com/user/NGYT40/featured
User avatar
gianakop
Freshie

Posts: 7
Joined: Mon Jul 30, 2018 8:20 pm
Location: Greece

Re: SmartDriveDuo-30 and Pixhawk

Postby Idris » Tue Aug 21, 2018 9:30 am

Hi gianakop,

This is great! I have share your steps to interface between MDDS30 and Pixhawk in MDDS30 Product Page. Thank you very much. :)
Cytron Technologies invest time and resources providing tutorial, training and support for STEM education and maker movement. We need your support by purchasing products from Cytron Technologies. Thanks.
http://www.cytron.com.my
User avatar
Idris
Moderator

Posts: 366
Joined: Thu Mar 22, 2012 5:28 pm
Location: Pulau Pinang

Re: SmartDriveDuo-30 and Pixhawk

Postby gianakop » Wed Aug 22, 2018 1:27 am

And one more video from the real world.....

https://youtu.be/JzlUV0LO-RI
Attachments
Nikos Giannakopoulos ( Math & STEM teacher)
Web: https://gianakop.wordpress.com/
Videos: https://www.youtube.com/user/NGYT40/featured
User avatar
gianakop
Freshie

Posts: 7
Joined: Mon Jul 30, 2018 8:20 pm
Location: Greece


Return to Robot Controller
