Disadvantages of 434MHz RF Transceiver Module (UART)-100m?

Postby Lowhim Intelligence » Sun Sep 28, 2014 10:49 am

Hello, I would like to know what is the disadvantage of this 434MHz RF Transceiver Module (UART)-100m.

1.If somebody else is using the same RF transceiver module, could that guy disturb my RF wireless communication?
2.Does this 434MHz RF Transceiver Module (UART)-100m is under same class with Bluetooth IEEE802.15.1, sound, sonic wave or visible radiation?
3.Does 434MHz RF Transceiver Module (UART)-100m work with android Samsung Galaxy note?
4.Does the noise rate of 434MHz RF Transceiver Module (UART)-100m can be considered as good?

I hope all taiko taiko could help :D

Regards.

Reference:
http://www.cytron.com.my/viewProduct.php?pcode=RF-UART-434-100M&name=434MHz%20RF%20Transceiver%20Module%20(UART)-100m

Lowhim Intelligence
Greenhorn

Posts: 3
Joined: Sun Sep 28, 2014 10:20 am

Re: Disadvantages of 434MHz RF Transceiver Module (UART)-100

Postby shahrul » Sun Sep 28, 2014 5:45 pm

As I know, big different with XBee is
RF Transceiver can't set ID, XBee can set ID.
So, if other project use RF Transceiver would be interrupt your RF Transceiver signal.
If use XBee, other project might be different ID and not interrupt your project.
User avatar
shahrul
Professional

Posts: 812
Joined: Sat May 16, 2009 9:54 pm
Location: Selangor

Re: Disadvantages of 434MHz RF Transceiver Module (UART)-100

Postby ober » Sun Sep 28, 2014 8:46 pm

1. Yes, but you can actually set address and channel for this wireless module, do check the User's Manual, under AT command.
2. Nop, they are using different protocol, it falls under Radio Frequency, RF.
3. Nop, Android phone or any smart as I know does not have this transceiver. There are many type of wireless technology and not all technology being embedded in smart phone.
4. No info on this.
Ober Choo
Cytron Technologies Sdn Bhd
www.cytron.com.my
User avatar
ober
Moderator

Posts: 1442
Joined: Wed Apr 15, 2009 1:03 pm

Re: Disadvantages of 434MHz RF Transceiver Module (UART)-100

Postby shahrul » Sun Sep 28, 2014 9:38 pm

ober WROTE:1. Yes, but you can actually set address and channel for this wireless module, do check the User's Manual, under AT command.

Owh, sound good this RF Transceiver also can set ID. I'm not finish read manual even I have use once. :lol:
User avatar
shahrul
Professional

Posts: 812
Joined: Sat May 16, 2009 9:54 pm
Location: Selangor

Re: Disadvantages of 434MHz RF Transceiver Module (UART)-100

Postby ober » Mon Sep 29, 2014 10:35 pm

Shahrul, we have yet to try it out, but the default is working. So welcome to try it and share it.
Ober Choo
Cytron Technologies Sdn Bhd
www.cytron.com.my
User avatar
ober
Moderator

Posts: 1442
Joined: Wed Apr 15, 2009 1:03 pm

Re: Disadvantages of 434MHz RF Transceiver Module (UART)-100

Postby Lowhim Intelligence » Wed Oct 01, 2014 4:37 pm

Thank you. I find this post very helpful. May this post helps others as well. :)
Lowhim Intelligence
Greenhorn

Posts: 3
Joined: Sun Sep 28, 2014 10:20 am

Re: Disadvantages of 434MHz RF Transceiver Module (UART)-100

Postby maxim » Wed Nov 05, 2014 12:29 pm

Anyone have an idea on how to use At command to set the module? Help~~~ :!:
maxim
Freshie

Posts: 4
Joined: Wed Nov 05, 2014 12:26 pm

Re: Disadvantages of 434MHz RF Transceiver Module (UART)-100

Postby ober » Thu Nov 06, 2014 8:24 am

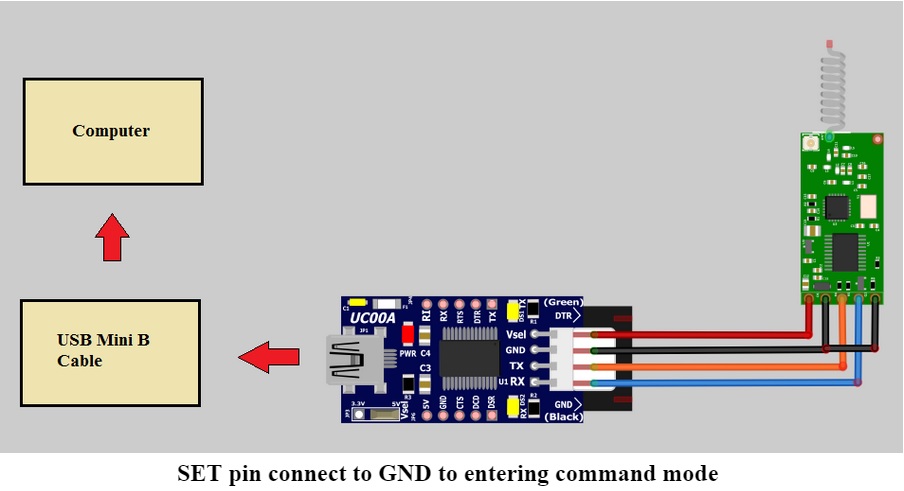

Did you check the User's Manual, page 13 shows the hardware connection to make the module into AT mode and you send command from computer to configure/change the parameter such as baudrate, channel, operation mode, etc.

100m in AT mode.jpg
Ober Choo
Cytron Technologies Sdn Bhd
www.cytron.com.my
User avatar
ober
Moderator

Posts: 1442
Joined: Wed Apr 15, 2009 1:03 pm

Re: Disadvantages of 434MHz RF Transceiver Module (UART)-100

Postby maxim » Sat Nov 08, 2014 10:16 am

Hi MrOber, thanks for the explanation. Now i know how already. We have to send the command through serial monitor. :P :P :P
At first i was scratching my brain because the manual only have the AT command and the circuit configuration. I think too much! :D
maxim
Freshie

Posts: 4
Joined: Wed Nov 05, 2014 12:26 pm
