Postby candit » Tue Jan 10, 2017 1:52 pm

Hello to everyone , I want to ask how to use this sensor to detect black and white surface that we put sticker around the plate as shown in the attachment . The 3 pins of the sensor were connected to +5V , GND and OUT terminal was connected to DC multimeter to see DC voltage. Example , if the sensor is pointed to black section , multimeter should show high voltage which is equal to almost +5V and if the sensor is pointer to white section on the ring , multimeter should show low voltage (0V) . The problem is the sensor cannot get high and low voltage when sensor is pointed to black and white sticker . Any ideas what cause the problem and how to solve it ? .
Attachments

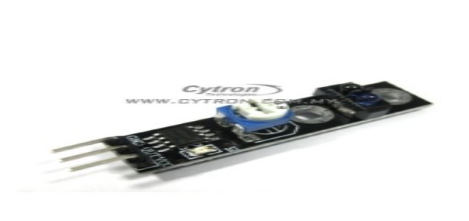

FIGURE 1 : IR LINE TRACKING SENSOR (SINGLE BIT)

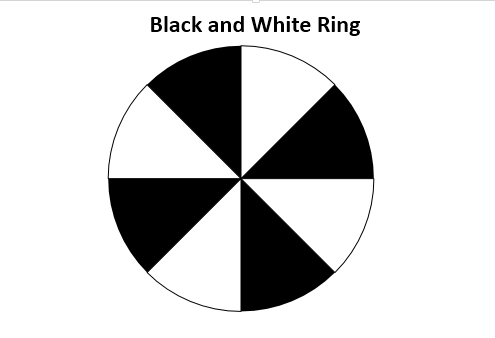

Figure 2 : Black and White Ring
candit
Greenhorn

Posts: 2
Joined: Tue Jan 10, 2017 1:21 pm

Re: IR Line Tracking Sensor (single bit)

Postby Idris » Wed Jan 11, 2017 4:00 pm

Hi candit,
candit WROTE:The problem is the sensor cannot get high and low voltage when sensor is pointed to black and white sticker.
Could you provide the voltage reading come out from the sensor?


Suggestion:
Try to adjust the voltage threshold by turning the variable resistor on the sensor. Adjust until the sensor can differentiate between black and white line.
Cytron Technologies invest time and resources providing tutorial, training and support for STEM education and maker movement. We need your support by purchasing products from Cytron Technologies. Thanks.
http://www.cytron.com.my
User avatar
Idris
Moderator

Posts: 393
Joined: Thu Mar 22, 2012 5:28 pm
Location: Pulau Pinang

Re: IR Line Tracking Sensor (single bit)

Postby candit » Fri Jan 20, 2017 2:44 am

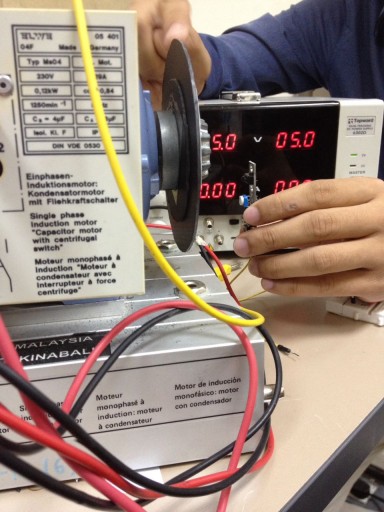

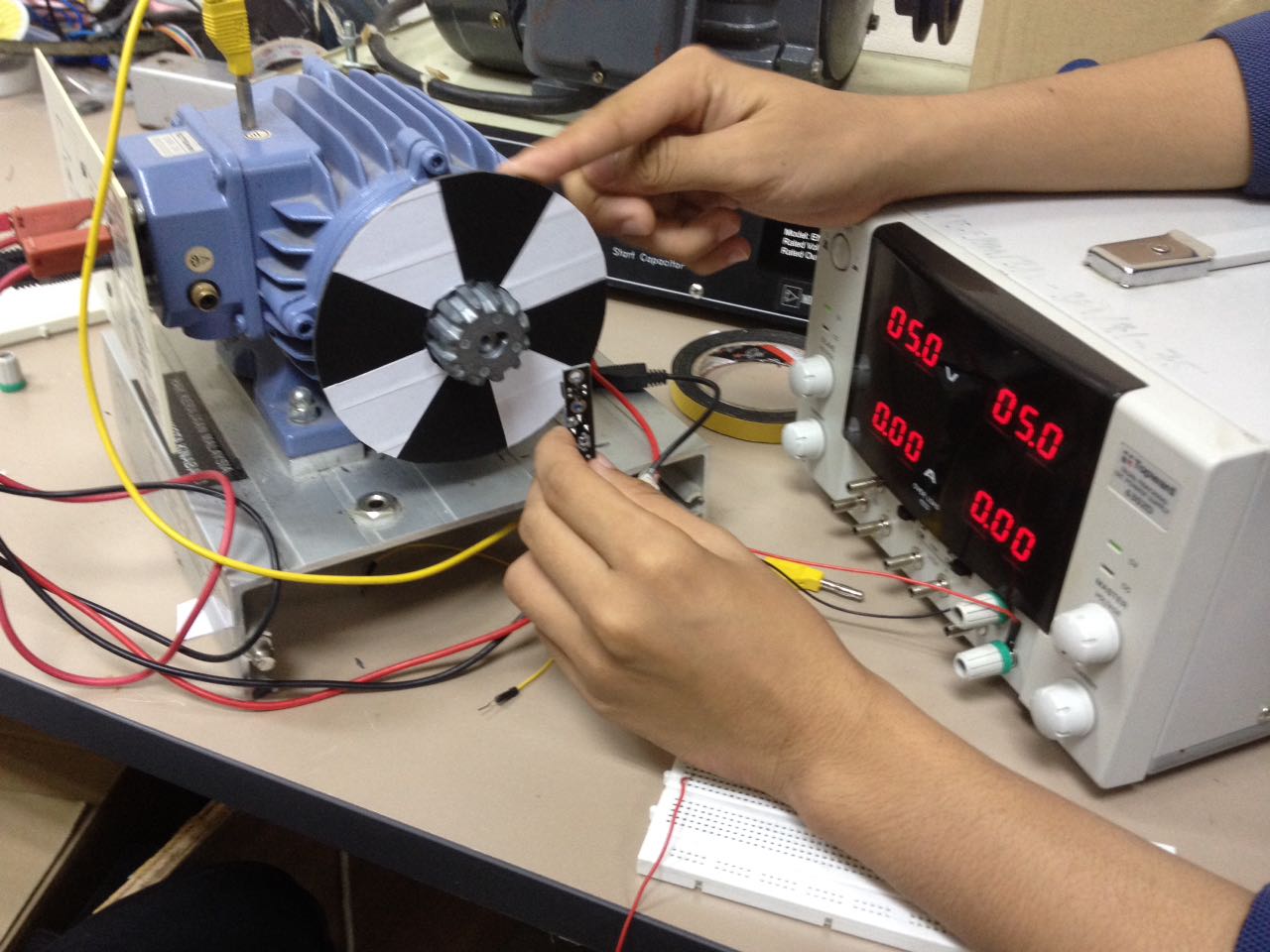

We have connected the sensor to +5v (Red wire) and Ground (Black wire) by using lab power supply. And then , the output (Yellow wire) from the sensor connected to multi-meter but we find out there are no reading on the multi-meter. We already try to adjust the voltage threshold by turning the variable resistor on the sensor but still the sensor can’t get high and low voltage when sensor is pointed to black and white sticker .
Attachments
candit
Greenhorn

Posts: 2
Joined: Tue Jan 10, 2017 1:21 pm

Re: IR Line Tracking Sensor (single bit)

Postby Idris » Sat Jan 21, 2017 12:08 am

Hi candit,

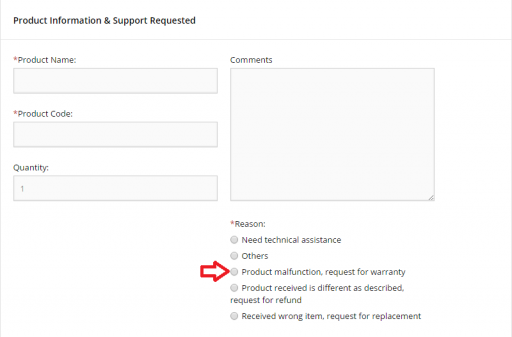

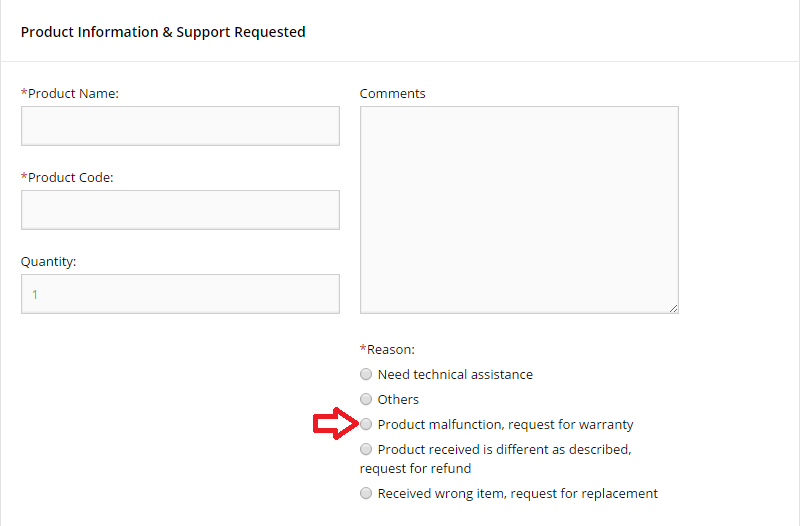

In case of product malfunction, you can request for replacement. Please go to Cytron's support page, and fill up the form under Product Information & Support Request.

Product Support Request.png

Thanks.
